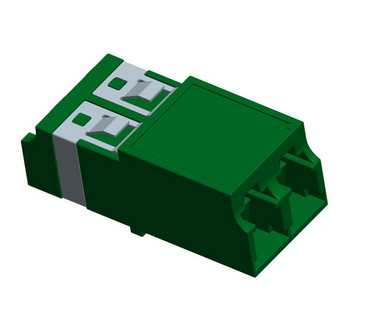

    Dust Laser Free Fiber Optic LC Duplex Adapter Singlemode with Internal Shutter

    Ask Lasest Price
    Brand Name : ZGT
    Model Number : ZZTAD-L21
    Certification : ISO9001,RoHS,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 900K PER MONTH
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Dust Laser Free Fiber Optic LC Duplex Adapter Singlemode with Internal Shutter

    Dust Laser Free Fiber Optic LC Duplex Adapter Singlemode with Internal Shutter


    Competitive Advantage:
    Telcordia GR-326, IEC, TIA/EIA Standard compliant.
    100% Optical performance inspection.
    Low Insertion Loss.
    RoHS Compliance.
    Customized design and production.

    Parts &Material

    PartsMaterialRemarks
    SleeveZirconia, PB
    HousingPEIFlammability UL94 V-0
    Dust capPVCFlammability UL94 V-0
    ShutterPEIFlammability UL94 V-0
    Metal ClipStainless Steel

    Optical Performance

    Premium GradeStandard Grade
    Insertion Loss≤0.1dB≤0.2dB
    Durability1000 times1000 times

    Enviroment and Mechanical

    PropertiesTest conditionConformanceTest result
    Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
    Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
    Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
    Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
    Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
    Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
    Operating Temperature-40ºC to +85ºC≤0.2dB
    Storage Temperature-40ºC to +85ºC≤0.2dB

    Dust Laser Free Fiber Optic LC Duplex Adapter Singlemode with Internal Shutter
