Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged

    Buy cheap Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged from wholesalers

    Buy cheap Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged from wholesalers
    • Buy cheap Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged from wholesalers

    Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged

    Ask Lasest Price
    Brand Name : ZGT
    Model Number : ZZTAD-LC7-Q-6
    Certification : ISO9001,RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 900K PER MONTH
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

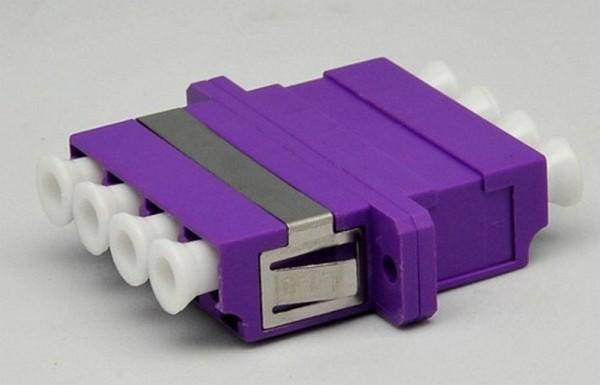

    Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged

    Fiber optic LC/PC Quad adapter with long flanged Muti-mode OM1/OM2/OM3./OM4,LOW LOSS

    LC AdapterYou are here: Home > Products > Fiber Optic Adapter

    LC Quad adapter with long flanged

    Serial Number: ZZTAD-LC7-Q-6

    Competitive Advantage:

    Telcordia GR-326, IEC, TIA/EIA Standard compliant.

    100% Optical performance inspection.

    Low Insertion Loss.

    RoHS Compliance.

    Customized design and production.

    Parts &Material

    Parts

    Material

    Remarks

    Sleeve

    Zirconia, PB

    Housing

    PC

    Flammability UL94 V-0

    Dust cap

    PVC

    Flammability UL94 V-0

    Clip

    stailess steel

    Optical Performance

    Premium Grade

    Standard Grade

    Insertion Loss

    ≤0.1dB

    ≤0.2dB

    Durability

    1000 times

    1000 times

    Enviroment and Mechanical

    Properties

    Test condition

    Conformance

    Test result

    Vibration

    10-55Hz, 1.5mm, 60min

    IEC61300-2-1

    ≤0.2dB

    Mating Durability

    1000 Mating, clean every 25 mating.

    IEC61300-2-2

    ≤0.2dB

    Impact

    1.5m, 8 drops

    IEC61300-2-6

    ≤0.2dB

    Strength of Coupling Mechanism

    40N, 10Min, L=22-28cm

    IEC61300-2-12

    ≤0.2dB

    Temperature Cycling

    40C to +75C, 40 cycles

    IEC61300-2-22

    Quality Multi Mode Fiber Optic Adapter Low Insertion Loss With Long Flanged for sale
