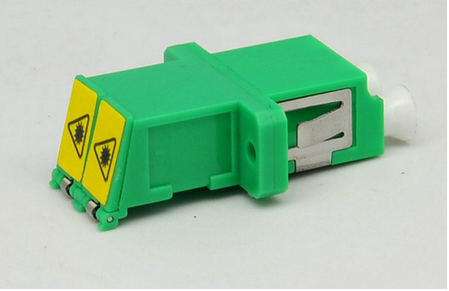

    Green Fiber Optic Adapter With Shutter Long Flanged ISO9001 RoHS Certification

    Ask Lasest Price
    Brand Name : ZGT
    Model Number : ZZTAD-LC13-D-0
    Certification : ISO9001,RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 900K PER MONTH
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Green Fiber Optic Adapter With Shutter Long Flanged ISO9001 RoHS Certification

    Fiber Optic adapter LC/APC DX adapter with plastic outer/externalshutter, long flanged

    LC Shutter adapterYou are here: Home > Products > Fiber Optic Shutter adapter

    LC DX adapter with shutter, long flanged

    Serial Number: ZZTAD-LC13-D-0

    Competitive Advantage:

    Telcordia GR-326, IEC, TIA/EIA Standard compliant.

    100% Optical performance inspection.

    Low Insertion Loss.

    RoHS Compliance.

    Customized design and production.

    Parts &Material

    Parts

    Material

    Remarks

    Sleeve

    Zirconia, PB

    Housing

    PC

    Flammability UL94 V-0

    Dust cap

    PVC

    Flammability UL94 V-0

    Shutter

    ABS

    Flammability UL94 V-0

    Metal Clip

    Stainless Steel

    Optical Performance

    Premium Grade

    Standard Grade

    Insertion Loss

    ≤0.1dB

    ≤0.2dB

    Durability

    1000 times

    1000 times

    Enviroment and Mechanical

    Properties

    Test condition

    Conformance

    Test result

    Vibration

    10-55Hz, 1.5mm, 60min

    IEC61300-2-1

    ≤0.2dB

    Mating Durability

    1000 Mating, clean every 25 mating.

    IEC61300-2-2

    ≤0.2dB

    Impact

    1.5m, 8 drops

    IEC61300-2-6

    ≤0.2dB

    Strength of Coupling Mechanism

    40N, 10Min, L=22-28cm

    IEC61300-2-12

    ≤0.2dB

    Temperature Cycling
